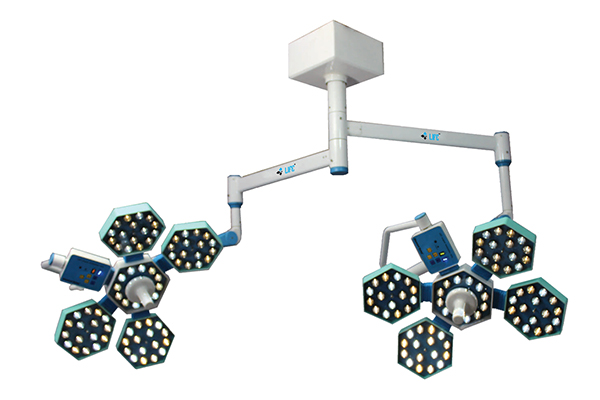

MODEL :: LM-4+4

OPERATING LIGHT LED

Technical Data

• Intensity 160000 lux+ 160000 lux
• CRI 93 Ra + 5Ra
• CCT 3500k - 5200 kelvin
• Focus Adjustable 100mm-250mm
• LED Bulb Life > 50000 hours
• Control Panel Digital with wireless remote
• Power Supply /50Hz AC
• No. of LEDs+ 76 (3 colour combination)

Special Features

• Wireless Remote Control
• 360Hassle Free Rotation System

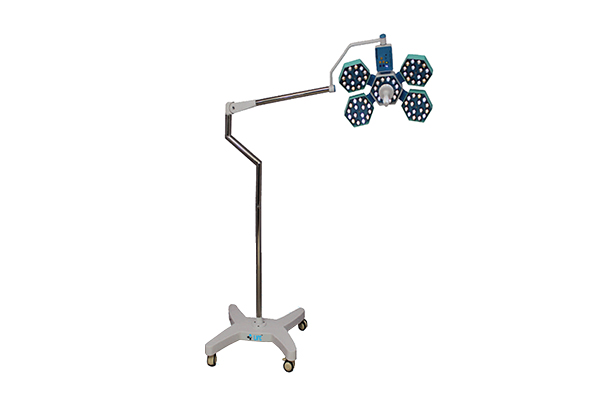

MODEL ::LM-4

MOBILE LIGHT LED

Technical Data

• Intensity 160000 lux
• CCT 3500k - 5200 kelvin
• CRI 93 Ra
• Focus Adjustable 100mm-250mm
• LED Bulb Life > 50000 hours
• Control Panel Digital with wireless remote
• Power Supply 220V/50Hz AC
• No. of LEDs + 76 (3 colour combination)

Special Features

• Wireless Remote Control
• 360Hassle Free Rotation System

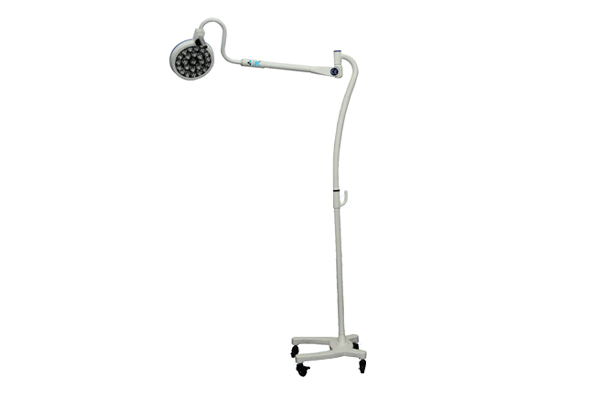

MODEL :: LM-E

Examination Light Led

LED examination Light with intensity of 70000 LUX and 4300 Kelvin (day light). The entire body is made of Alluminium. It comes with a metallic sterile handle for easy positioning of light head. Anti Static Castors with Brakes for better stability. Available in Ceiling / Wall mount / Mobile

Technical Data

• Intensity 70000 Lux at 1 meter
• CT 4300 Kelvin
• CRI 95 Ra
• Focus Adjustable 150mm-200mm
• LED Bulb Life > 50000 hours
• No. of LEDs 24

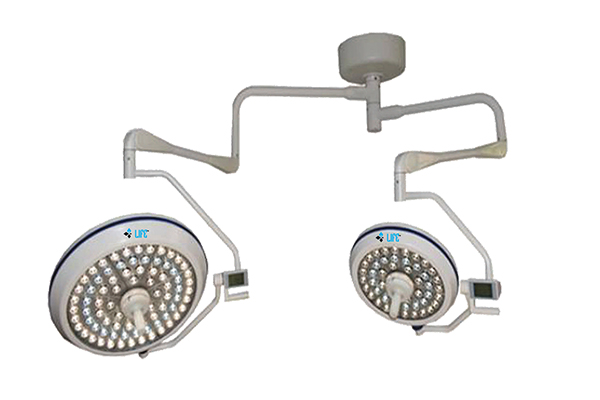

MODEL :: LM-700+500

Imported Operating Light Led

LED OPERATING LIGHT LED 700/500(Round Arm) FEATURE Germanyimported Osram LED medical light source is adopted II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation. Cold infrared-free light In comparison to conventional halogen and gas discharge lamps, the “cold” II LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.

Technical Specifications

• Technical specifications for lights LED700 LED500
• Central luminance at 1m working distance 40,000~18,0000 lux 40,000~160,000 lux
• Focusable light-field size at 1 m distance 120~300mm 120~300mm
• Colour temperature 3500~5000K 3500~5000K
• Depth of Focus >700mm >700mm
• Colour Index Ra 95 95
• Power Supply 110~240V 50/60Hz 110~240V 50/60Hz
• Effective bulb service life >50,000h >50,000h
• Diameter of lamp housing 700mm 550mm
• Power consumption of light heads(W) 60 48
• Installation height (Ceiling type) 280-320 cm 280-320 cm
